Computer Organization and Computer Architecture
Computer organization and Computer organization and Computer Architecture refers to the operational structure and functional design of the components within a digital system. refers to the operational structure and functional design of the components within a digital system. It focuses on how various hardware units function and interact to execute instructions efficiently.
A general-purpose computer is the most widely recognized example of a digital system. However, digital systems also include devices such as:
- Telephone switching exchanges
- Digital voltmeters and counters
- Electronic calculators
- Digital displays
On the other hand, computer architecture deals with the specification of the instruction set and the design of hardware units that execute those instructions. It defines what operations a system can perform and how it interfaces with software.

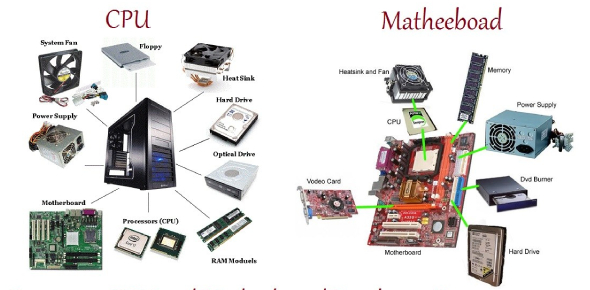

Computer Hardware Components
Computer hardware encompasses a wide range of physical elements, including:
- Electronic circuits
- Display units
- Magnetic and optical storage devices
- Communication interfaces
At the core of the system lies the Central Processing Unit (CPU), which includes functional units responsible for performing arithmetic operations, logical decisions, and control tasks as directed by computer programs.
Main Components of a Computer System
A typical computer system is composed of five major units:
- Input Unit
- Central Processing Unit (CPU)
- Memory Unit
- Arithmetic and Logical Unit (ALU)
- Output Unit
1. Input Unit
The input unit is responsible for reading and transferring data into the computer. Common input devices include:
- Keyboard
- Mouse
- Joystick
- Trackball
- Microphone
Among these, the keyboard is the most widely used. When a key is pressed, it is converted into its corresponding binary code and transmitted to either the memory or the CPU.
2. Central Processing Unit (CPU)
The CPU is the “brain” of the computer. It executes instructions provided by the software by carrying out basic arithmetic, logical, control, and I/O operations. It comprises two main sub-units:
- Arithmetic and Logical Unit (ALU)
- Control Unit (CU)
3. Memory Unit
The memory unit stores programs and the data being processed. It is categorized into:
a. Primary Memory
This is volatile memory that operates at high electronic speeds and includes:
- RAM (Random Access Memory): Temporary storage lost on shutdown.
- ROM (Read-Only Memory): Contains startup instructions and remains unchanged.
- Cache Memory: Small, fast memory located close to the CPU for quick data retrieval.
b. Secondary Memory
This is non-volatile and used for long-term data storage. Examples include:
- Magnetic disks (e.g., hard drives)
- Magnetic tapes
- Optical discs (e.g., CDs, DVDs)
4. Arithmetic and Logical Unit (ALU)
The ALU performs all arithmetic and logic operations, such as:
- Addition, subtraction, multiplication, division
- Logical operations like AND, OR, NOT
These operations are fundamental for executing any program or instruction set.
5. Control Unit
The control unit (CU) directs the operation of the processor. It orchestrates how data flows between the CPU, memory, and peripherals, ensuring that each instruction is executed correctly.
Often called the nerve center of the CPU, the CU coordinates the internal processes of the computer system.
Example:
Consider the instruction: Add LOCA, R0
This command adds the value stored in memory location LOCA to the contents of register R0, and the result is stored back in R0. Internally, this involves several micro-operations controlled by the CU.
6. Output Unit
The output unit presents processed data in a user-understandable form. Common output devices include:
- Monitor: Displays visual output (text, graphics, etc.)
- Printers, speakers, and other peripherals may also be used depending on the output format.
These devices communicate the results of computations or actions to the user.
Conclusion
Understanding the distinction between computer architecture and computer organization is essential for grasping how computer systems function.
- Architecture defines the logical blueprint and capabilities of a system.
- Organization focuses on the internal hardware implementation and performance.
Together, they provide the foundation for building efficient, scalable, and high-performance computing systems.
